The Redline CNC Controller is an all new, built from the ground up, controller that Onefinity designed in conjunction with Redline to create a modern CNC controller with advanced features, expandability, and ease of use at it's core.

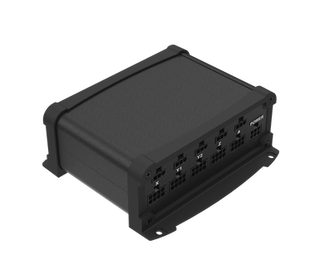

Advanced Redline CNC Controller — The All New Redline CNC Controller

Redline CNC has created some of the best CNC spindles on the market with their all metal VFDs, 1.5kw and 2.2kw power options, 80mm and 65mm size options, and safety certification, leading the way in spindle quality in the hobby CNC market.

REDLINE ELITE EARLY ADOPTER PROMO PACKAGE

Buy Now

By partnering with Redline, we’ve combined our five years of experience and the insight gained from tens of thousands of machines in the field to deliver exactly what our customers have been asking for: the most-requested features, simplified workflows, an intuitive layout and GUI, and innovations inspired by real-world support feedback.

This collaboration has resulted in a controller designed to be loved by our users and to redefine the standard for modern CNC machines—just as we did in 2020 with the introduction of the Onefinity CNC, making ball screws standard; again in 2023 with the Elite Series, which brought closed-loop steppers to the hobby CNC market; and now, once more, with the release of the advanced Redline CNC Controller.

Check out the first look at the advanced Redline CNC Controller from our AWFS 2025 unvailing:

Want to see more of it in action?

Check out what our friends showed when visiting us at the AWFS Booth (along side our upcoming release, the Onefinity CNC 4x8 Machine, "The Full 8" )!

General Specifications

	Elite Redline Controller
Stepper Motor Compatibility	Closed Loop with Error Output
Number of Axes	4
Motion Control	Custom Real-Time Operating System
Motor/Controller Power	Separate
Maximum Motor Supply Voltage	48V
Maximum Motor Input Current	10A
USB Supply Voltage	4.8V ~ 5.25V
USB Power	2.5W (500mA)
Active Cooling	N/A
E-Stop	External (Motor power supply)
Operating Temperature	5°C to 45°C
E-Stop	External on motor power

Stepper Drivers

	Elite Redline Controller
Number of Drivers	5

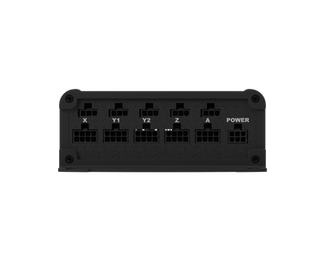

Driver Configuration	X, Y1, Y2, Z, A
Stepper Interface	Step, Dir, Enable, Error Differential drive (>2V @ +/-20mA)
Error Detection	Error Input
Stall Homing	No
Sensor Homing	Yes Dedicated Connectors
Microstepping	Supported Configured on motor
Motor Supply Voltage	5V to 48V
Motor Output Current	7A Supply Pin Rating Max total output 10A RMS
Maximum Step Rate	100kHz

Interfaces

	Elite Redline Controller
Power	6-Pin Molex Mini-Fit Jr
USB	USB 2.0 USB-C
Stepper	8-Pin Molex Mini-Fit Jr
Dedicated Homing Sensor	3-Pin Molex Mini-Fir Jr
Inputs	8 Isolated Normally-Open Switch DB-25 Connector
Outputs	4 Isolated 50V/100mA RMS DB-25 Connector
I/O Expansion Bus	Yes
Probe Input	Normally-Open Switch Dedicated connector
Tool Setter Input	Normally-Open Switch Dedicated connector
PWM/Laser Output	5V/15mA 10kHz max Adjustable Resolution Dedicated connector
VFD Spindle	RS-485 Dedicated connector
Future Expansion	SD Card Interface

Software

	Elite Redline Controller
Compatibility	Windows, Linux, Mac
Free Software Updates	Over-the-air USB Drive
Free Firmware Updates	USB
Jogging	Distance Continuous Game Controller Pendant¹
Probing	Z-Height Probe Block
Overrides	Feed Spindle
Power-Fail Recovery	Supported
Jump to Toolpath Line	Supported
Tool Change with Tool Setter²	Manual Rapid Change ATC
Spindle Control	Manual via User On/Off via Output VFD via RS-485
Work Offsets	9
Toolpath Visualization	G-code Viewer 3D Display
Remote Access	File Manager Web Interface Webcam
Mobile Support¹	Android iOS

In development ↩↩
Additional support coming soon ↩

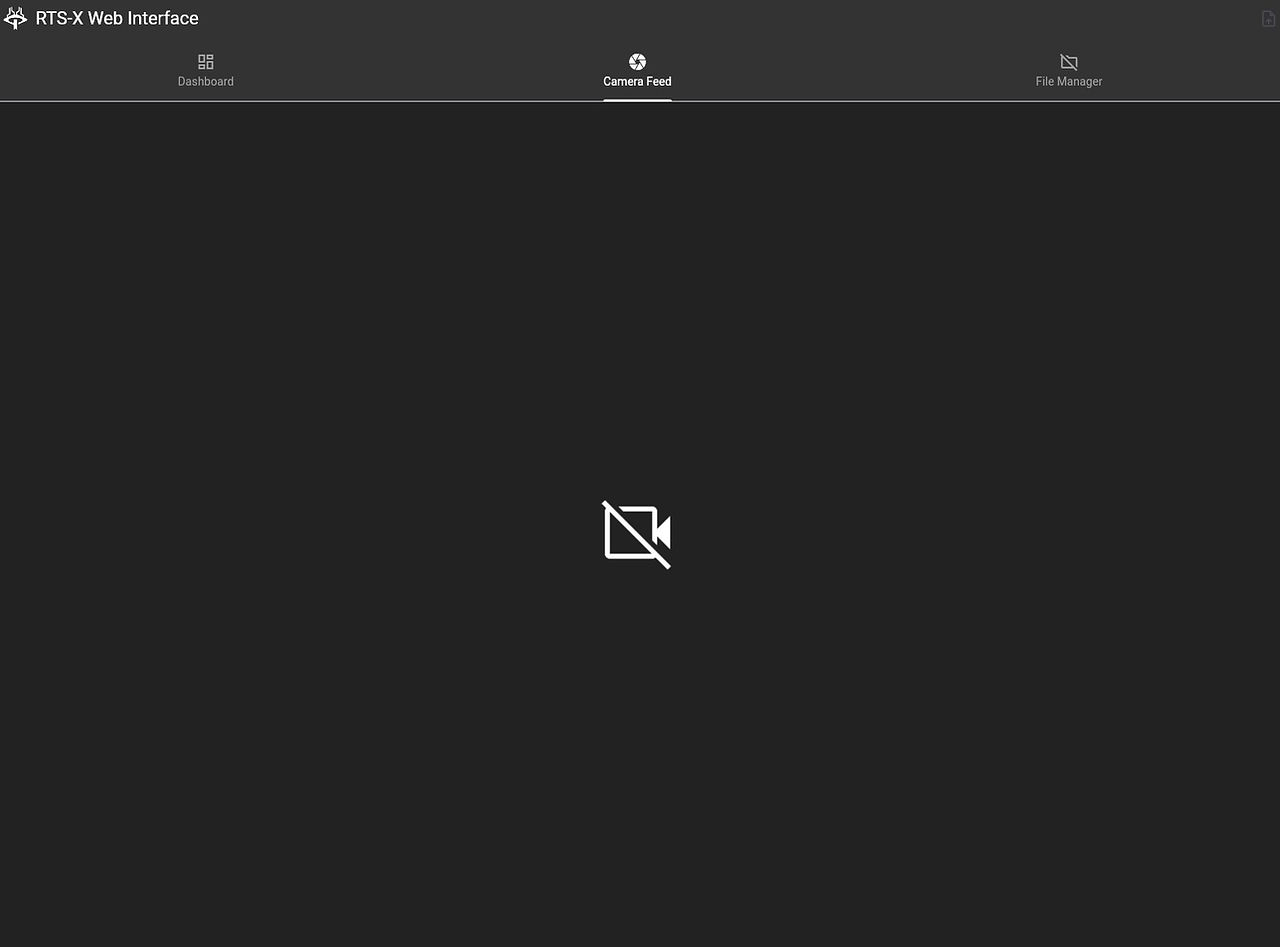

Interface and Web UI v1.0

(While Onefinity and Redline has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options availability are all subject to change without notice. Product design specifications and colours are subject to change without notice and may vary from those shown. Errors and omissions excepted. Images displayed are for illustration purposes only. The images are intended to help illustrate the product and it’s functions and are not indicative of actual relative differences.)
